◆Make Communication Faster
◆High-quality Sound
◆IP55 protection level
◆Weighing about 5kgs, light and convenient
◆Built-in 60Ah lithium battery, 150 hours of standby time after charging
◆ABS material box, impact-resistant, heat-resistant, cold-resistant
◆Universal foldable antenna (about 78.8cm long), easy to store
◆2-digital Display, simple buttons, intuitive and easy to operate
◆20W/10W power can be switched, high-power transmission distance is longer
◆16 Channels

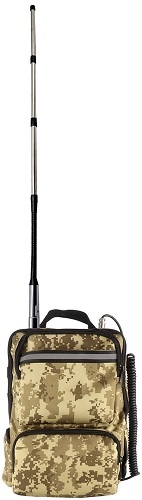

◆Can be carried on the back or by hand, flexible and applicable
◆Camouflage fashion backpack
◆Large-capacity backpack, load more items
◆Applicable to various scenarios

General

Frequency Range

400-470 MHz

Channel Capacity

16

Antenna connector type

SO-239

Channel Spacing

12.5/25kHz

Frequency Stability

±2.5PPM

Operating Voltage

16.8 V DC

Battery Capacity

Built in 60Ah

Dimensions (ex ant, H×W×D)

210x330x70 mm

Weight

About 5kg

Transmitter

Output Power

20W/10W

Analog FM Modulation

F3E

Conducted/Radiated Emission

-36dBm≤1GHz;
-30dBm＞1GHz

FM Hum & Noise

55dB@25KHz
50dB@12.5KHz

Adjacent Channel Power

±5kHz@25KHz
±2.5kHz@12.5KHz

Audio Response

＋1dB～－3dB

Modulation Distortion

≤5%

Carrier Frequency Tolerance

±500Hz

Receiver

Sensitivity(Analog)

0.28uV(12dB SINAD)
0.35uV(20dB SINAD

Adjacent Channel Selectivity

80dB@25K;
74dB@12.5K

Inter Modulation Response Rejection

85dB

CSQ Hum & Noise

55dB@25K;
50dB@12.5K

Rated Audio Power Output

2W

Rated Audio Distortion

≤5%

NOTE:

1.All specifications are subject to change without notice due to continuous development.
