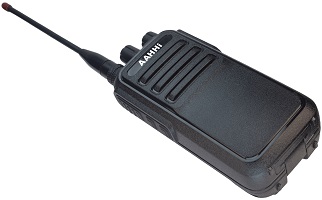

A30 10W High Power 2 Way Radio IP67 Waterproof

GMRS Radio 10W IP67 Waterproof Handheld two way radio makes communication faster with high-quality audio. Voice prompt let you hear the prompt spoken in English, Ideal for hunting, fishing, outdoor adventures, construction sites, and large events.

— Highlights —

	Voice Prompt			Hands-free VOX
	The radio actually talks to you in a human-like voice. You will hear the prompt spoken in plain relative language.			This hands-free feature allows you to get on with other manual tasks while you stay in touch with other users.
	1 Programming Key			Scan
	You can program or assign to perform a user specific function. Personalize the required functions for convenient and quick operation.			The channel scan feature enables a two way radio to continuously scan each channel for activity.
	Wide/Narrow Band			Power Adjustable
	Narrowband takes up less frequency space and lowers the chance for interference, wideband channels can carry more infos but require more power.			This feature allows you to switch between high and low power modes on the radio.
	Frequency Hopping			Easy Pairing
	Frequency hopping is a method of transmitting radio signals by rapidly switching the carrier between different frequency channels.			This radio has a fast frequency measurement and decoding function, easy to talk with other radios.
	Digital Anti Cracking			Wireless Cloning
	Using the digital anti-cracking feature, you can realize the anti-cracking function and avoid receiving illegal signals.			Wireless cloning allows you to easily copy radio settings from one radio (the master) to all other radios within range without the use of wires or cables.
	Low Battery Alert			Battery Saver
	This warning reminds that your battery is low and must be either recharged or replaced.			The radio will switch to automatically after being left unused for a certain amount of time, lessens the drain on your battery and makes it last longer.
	Busy Channel Lockout			Time-out Timer
	This feature keeps communication lines open by preventing radios from listening or transmitting through conversations outside their talkgroup.			This feature will stop the transmission of the two-way radio if the radio is transmitting for a long duration.
	Compandor			Scrambler
	This feature can help improve signal-to-noise ratio, reduce the background noise and obtain good audio quality at the receiver.			A technology is used to scramble communications to prevent other radio users in the vicinity from listening to your conversations.
	IP67 Waterproof			CTCSS/DCS
	This two way radio has IP67 when exposed to various elements.			CTCSS uses continuous tones below 300 Hz whereas DCS uses digital data and all encoded words can be used on the same channel without interference.
	Built-in Flashlight (Optional Paid Feature)
	These two way radios have a built-in flashlight function to provide you with light at night or in dark environments.

— Specifications —

General
Frequency Range	400-470 MHz
Channel Capacity	16
Zone Capacity	/
Channel Spacing	12.5/25kHz
Frequency Stability	±500Hz
Antenna Impedance	50Ω
Operating Voltage	DC 7.4V
Battery Capacity	2500mAh
Battery Life(5-5-90 Duty Cycle,High TX Power)	15 hours
Dimensions (ex ant, H×W×D)	137x61.5x41.3 mm
Weight	About 336g
Transmitter
Output Power	10W/5W
Analog FM Modulation	16KФF3E
Digital 4FSK Modulation	/
Conducted/Radiated Emission	< -30dBm [ < 1 GHz]; < -25dBm [ > 1 GHz ]
Modulation Limiting	±2.5kHz @12.5 kHz ±5kHz @ 25kHz
FM Hum & Noise	<-40 dB
Adjacent Channel Power	≤-65 dB
Audio Response	＋1dB～－3dB
Modulation Distortion	≤5%
Digital Vocoder Type	/
Digital Protocol	/
Carrier Frequency Tolerance	±500Hz
Receiver
Sensitivity(Analog)	≤0.16μV@12dB SINAD
Selectivity(Digital)	/
Adjacent Channel Selectivity	≥60dB
Inter Modulation Response Rejection	≥60dB
CSQ Hum & Noise	<-40 dB
Rated Audio Power Output	≤1000mW
Rated Audio Distortion	≤5%
Conducted Spurious Emission	< -57 dBm [ < 1 GHz ] ; < -47 dBm [ > 1 GHz ]
Co-channel Rejection	≥-8dB
Block	≥84dB
Received Signal To Noise Ratio	<-40 dB
NOTE: 1.All specifications are subject to change without notice due to continuous development.
